Roll to Roll Vacuum Laminator

Introduced in many customers' manufacturing processes for FPC, COF, touch panel sensor, and FMM — maintaining high precision, track record, and reliability as No.1. Three models built on one platform: general purpose, superior precision, and compact custom design.

MVR-250/500 MVRS-250/500 MVRC-250T
Roll to Roll Vacuum Laminator

General Purpose Vacuum Laminator

MVR-250 / MVR-500
MVR-250/500 general purpose vacuum laminator

Purpose: High-performance roll-to-roll vacuum laminator introduced across many customers' manufacturing processes for FPC, COF, touch panel sensor, and FMM — maintaining No.1 precision, track record, and reliability.

Features:

  • Stable temperature distribution
  • Precise lamination
  • No air bubble (no micro void)
  • High yield rate

Model / Max Width

Max WidthMVR-250: 260mm   MVR-500: 550mm

Specifications (MVR-250, reference)

Max. work width / thickness250mm / 0.03–0.5mm (MAX. 2mm for sheet)
Achieved vacuum figureMax. 50Pa within 10 min
Roll press methodAir pressure
Applied temperatureRoom temperature–150°C (at no load)
Tact0.3–2m/min
Device dimensionsW2500 × D1500 × H1750mm
Power supply3Φ 200V 20kVA
Weight3500kg
Roll to Roll Vacuum Laminator

Superior Vacuum Laminator

MVRS-250 / MVRS-500

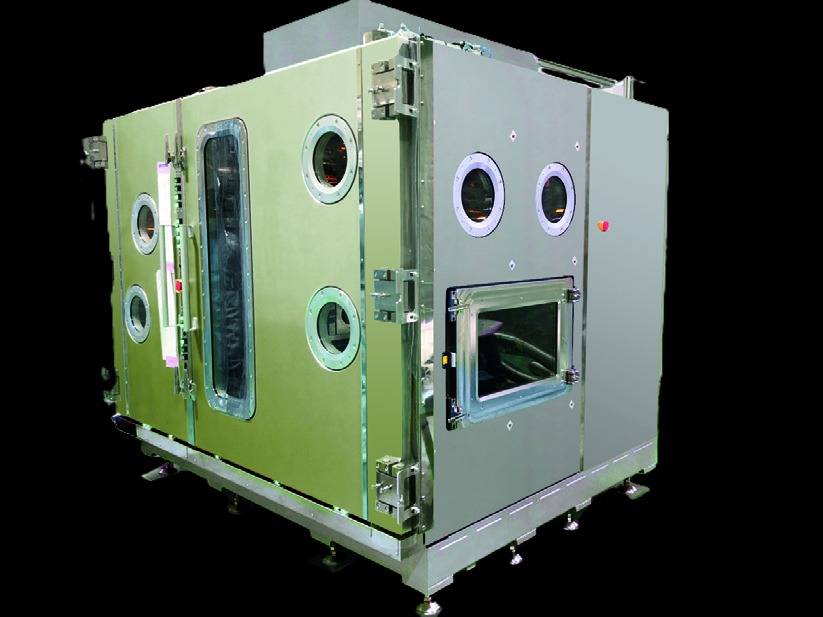

MVRS-250/500 superior vacuum laminator

Purpose: A version-up of the MVR-250/500 platform, engineered for customers who need even higher lamination precision — including super fine pattern circuit manufacturing.

Features:

  • Superior engineering with minimum distortion by vacuum
  • Improved repeat lamination precision
  • Version-up of the MVR-250/500
  • Available for super fine pattern circuit manufacturing

Model / Max Width

Max WidthMVRS-250: 260mm   MVRS-500: 550mm
Roll to Roll Vacuum Laminator (Customize)

Compact Design R-R Vacuum Laminator

MVRC-250T

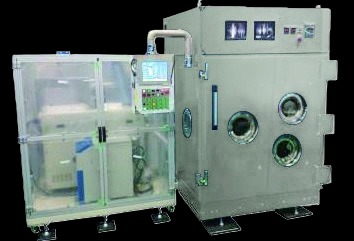

MVRC-250T compact design roll-to-roll vacuum laminator

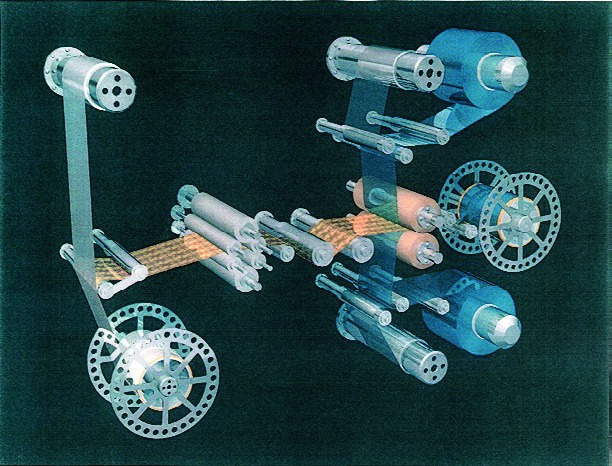

Illustration of the MVRC-250T roller and film-feed mechanism
Internal roller and film-feed mechanism

Purpose: A customized, compact-design roll-to-roll vacuum laminator, built on the reliance and advanced technology MCK has developed for electric parts that demand high precision quality.

Model / Max Width

Max WidthMVRC-250T: 260mm

Have a question about the vacuum laminator series?

Talk to our team about MVR-250/500, MVRS-250/500, MVRC-250T specifications, options, or your specific process requirements.
