Auto-cut Laminator

Roll-to-sheet lamination with automatic film cutting to size — available in an atmospheric platform for HDI substrates and a vacuum (reduced pressure) platform for high-value substrates.

Atmospheric — MFP-600 Vacuum — HLM-AV610N

Atmospheric Auto-cut Laminator

MFP-600

Purpose: Automatically cuts roll-form film to the required dimensions and precisely bonds it to the substrate under atmospheric pressure, built for mass production of HDI substrates.

Features:

Auto-cut method feeds and cuts film to the work sheet size automatically
Handles sheet sizes from 250×250 up to 610×610mm
Flexible bonding methods for a wide range of applications
Reliable, consistent results for high-volume production

Specifications

Effective size	250×250 to 610×610mm
Lamination speed	MAX 6.0m/min
Lamination environment	Atmospheric, clean-room compatible
Film cutting	Auto-cut method

Vacuum Auto-cut Laminator (Reduced Pressure)

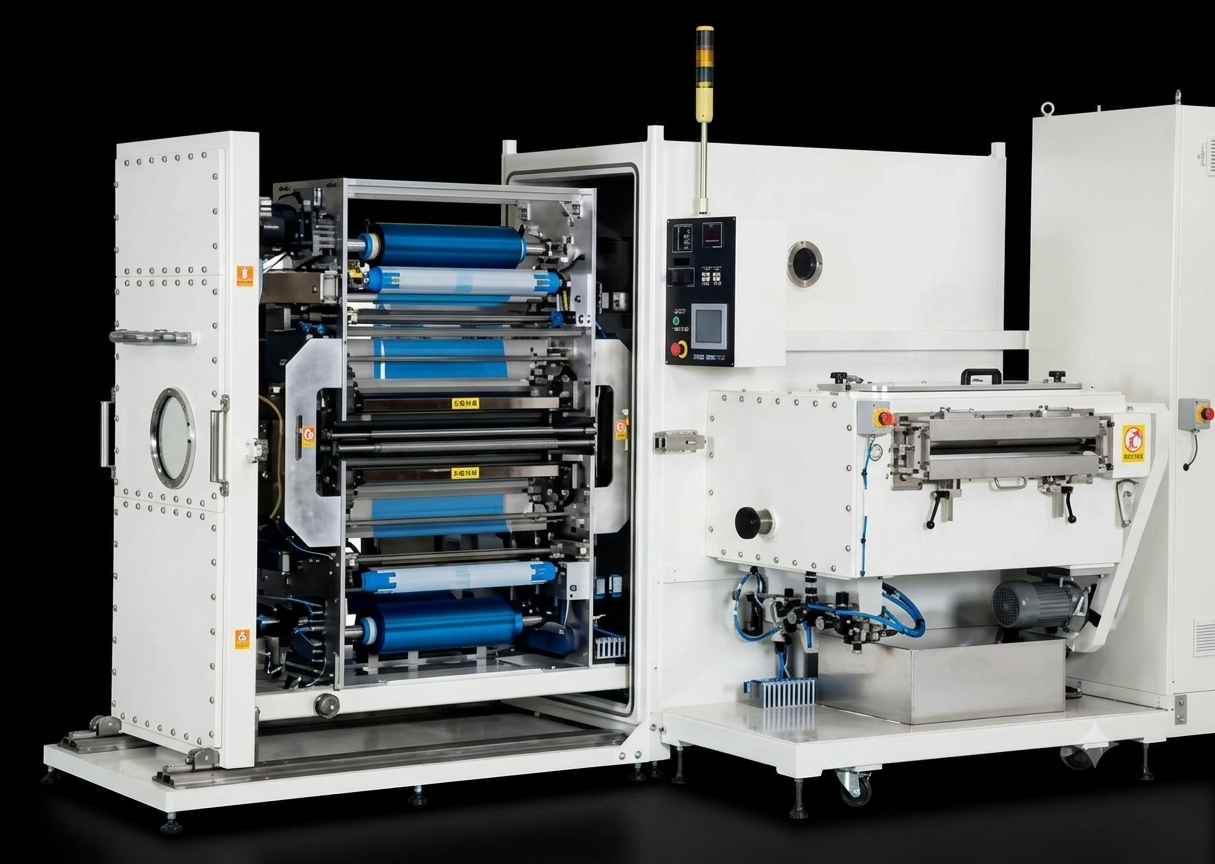

Vacuum Auto-cut Laminator

HLM-AV610N

Purpose: Roll-to-sheet dry film lamination with automatic film cutting to size, laminated under reduced pressure for defect-free bonding of high-value substrates.

Features:

Auto-cut method feeds and cuts film to the work sheet size automatically
Reduced-pressure lamination suppresses bubbles and foreign particles
Handles sheet sizes from 200×200 up to 610×610mm
Built for mass production of high-value substrates

Specifications

Effective size	200×200 to 610×610mm
Lamination speed	MAX 6.0m/min
Lamination environment	Reduced pressure (13.3kPa)
Film cutting	Auto-cut method
